Awnings

Zapytaj o Produkt

Silver Plus

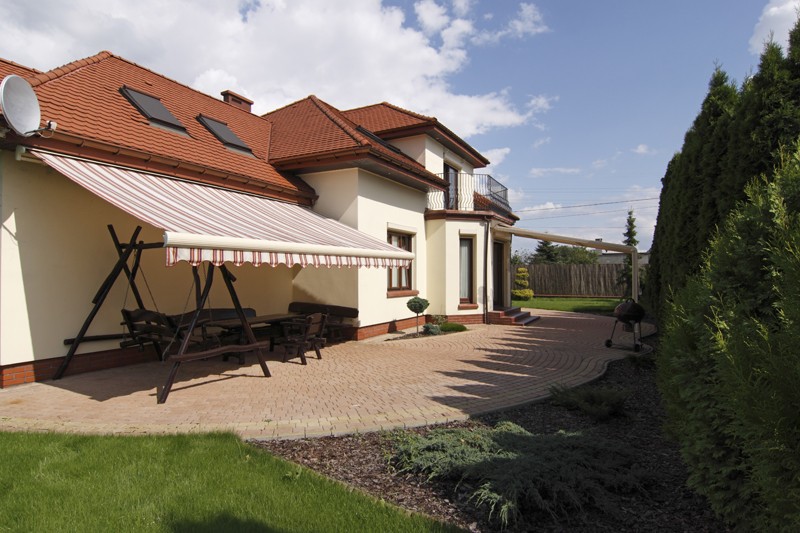

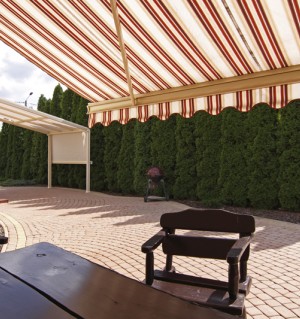

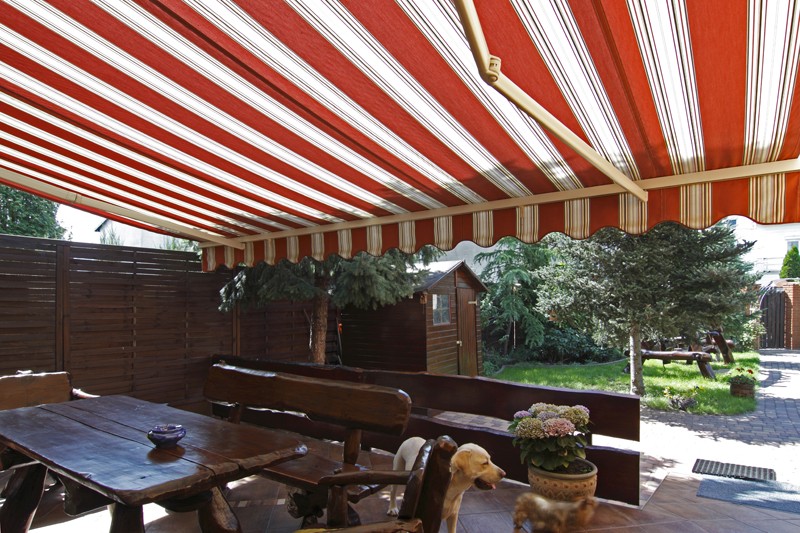

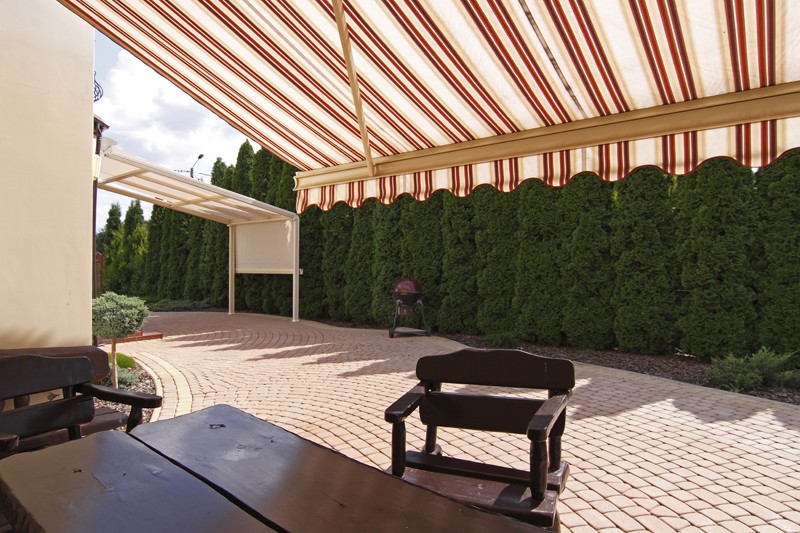

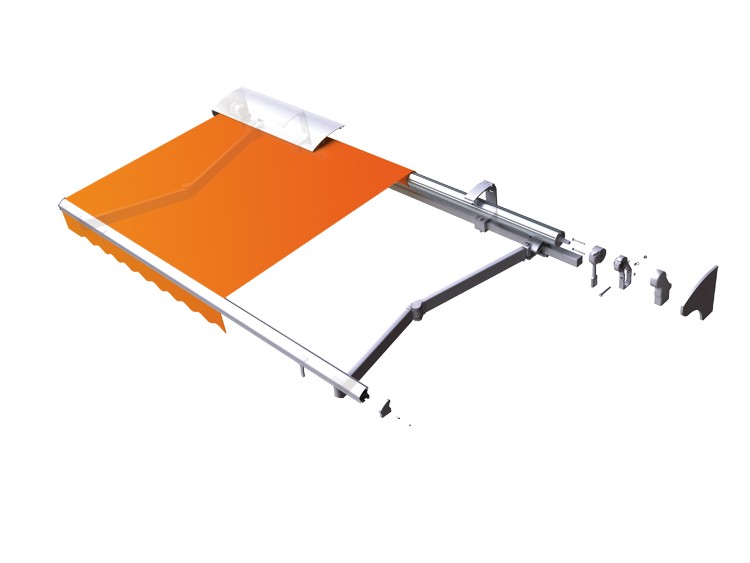

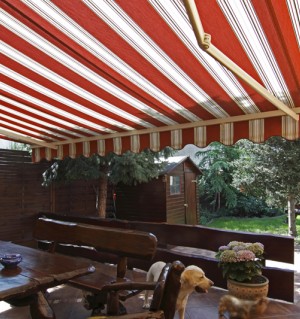

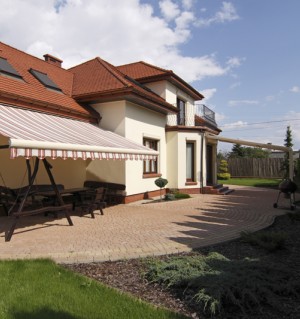

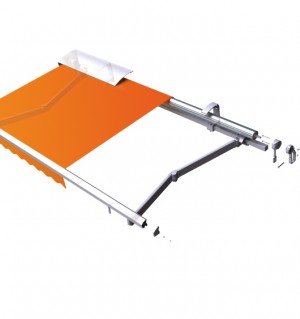

SILVER PLUS has a light construction, which makes it a very economic solution for shading terraces and balconies of medium size. Folding arms of special aluminium alloy are installed on brackets made by machines using numerical control. A plate link chain applied to the articulated joints makes them strong and durable. A solid steel square bar supports the construction. This solution gives relative freedom of bracket location and simplifies the awning installation. An optional aluminium hood protects the rolled-up fabric and enhances the aesthetic look of the whole awning. Construction elements are powder lacquered in white colour. There is the possibility to use overlapping arms in this awning.



Technical parameters

CASSETE: no

ROLLER TUBE: 70mm and 80mm diameter

MOUNTING:  wall, ceiling, roof

PROJECTION: 1.6m; 1.9m; 2.2m; 2.5m

MAXIMUM PROJECTION: 2.5m

MAXIMUM WIDTH: 5.3m

MINIMUM WIDTH: projection + 0.4m

ARMS: sfolding, aluminum, with springs and plate Flyer’s chain; in case of overlapping arms minimum width = projection - 0.4m

OVERLAPPING ARMS: no

TILT ANGLE: 5°~40°

OPTIONAL HOOD:yes

CONSTRUCTION COLOR: powder coating: white

FABRIC: over 100 patterns

MANUAL OPERATION: crank: 1.5m; 1.8m; 2.2m

AUTOMATIC DRIVE: motor, motor with manual override, remote control, wind-sun weather control

VALANCE: standard height 21cm (±0.5cm), shape like in the provided template, maximum height 40cm
