TM 62 2.1 DOORS
The TM 62 2.1 Door System is used to construct thermo-insulated, acoustic and aesthetic doors for external development in residential, public service and industrial buildings.
The system enables the construction of the following:
- one-leaf inside and outside door,
- two-leaf inside and outside door,
- one- and two-leaf door built into a cabinet, with transom and additional illumination.
TECHNICAL DESCRIPTION

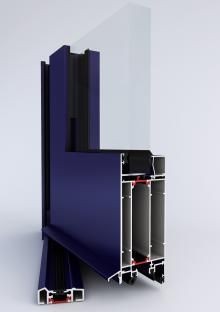

The system consists of three-chamber aluminium profiles with a thermal separator.
The casing depth is as follows:
- frame - 5620 mm
- leaf - 62 mm
The TM 62 system may use various fill types.
Maximum leaf dimensions:
- door leaf height - 2300 mm,
- door leaf width - 1250 mm,
ADDITIONAL ADVANTAGES (PARTICULAR FOR EACH SYSTEM)
The wide range of profiles enables the construction of various individual door types. Different width of profiles enables the application of a full selection of modern fittings and individual handles and pulls. The profile width enables the use of hidden hinges, as well as remote controlled locks.
Technical parameters
| Parameter | Norm | Value |
| Air infiltration | PN-EN 12207 | Class 4 |
| Water-tightness | PN-EN 12208 | E1050 |
| Deformation | PN-EN 12210 | C4 |
| Acoustic insulation | PN-EN ISO 140-3 | 30÷44 dB |
| Thermal insulation | Uf=2,02÷2,51 W/m2K | |
| Corrosivity category | PN-EN ISO 12944-2:2001 | C1, C2, C3, C4 |
| Anti-burglar protection | PN-ENV 1627:2006 | Class 2 i 3 |
